Product code: EASYARC205-PAK
Description
Description
TINY, PORTABLE MMA INVERTER.

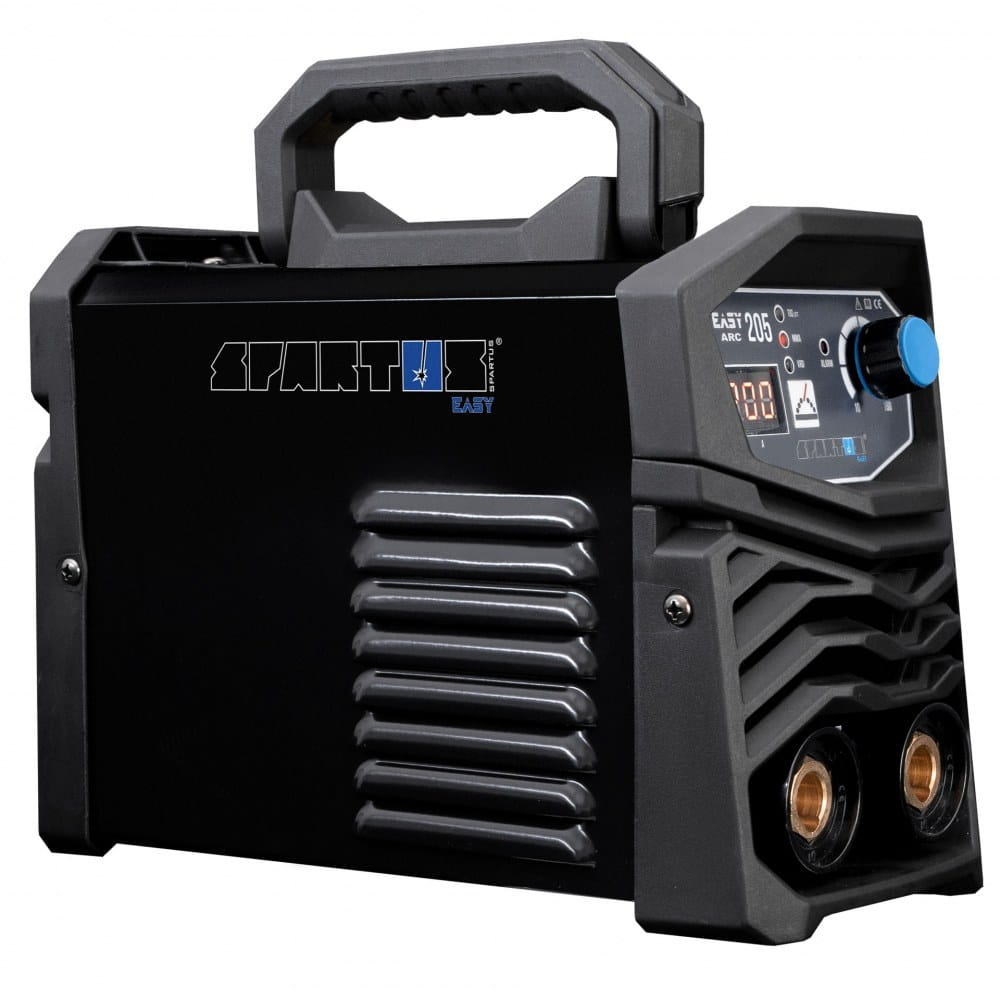

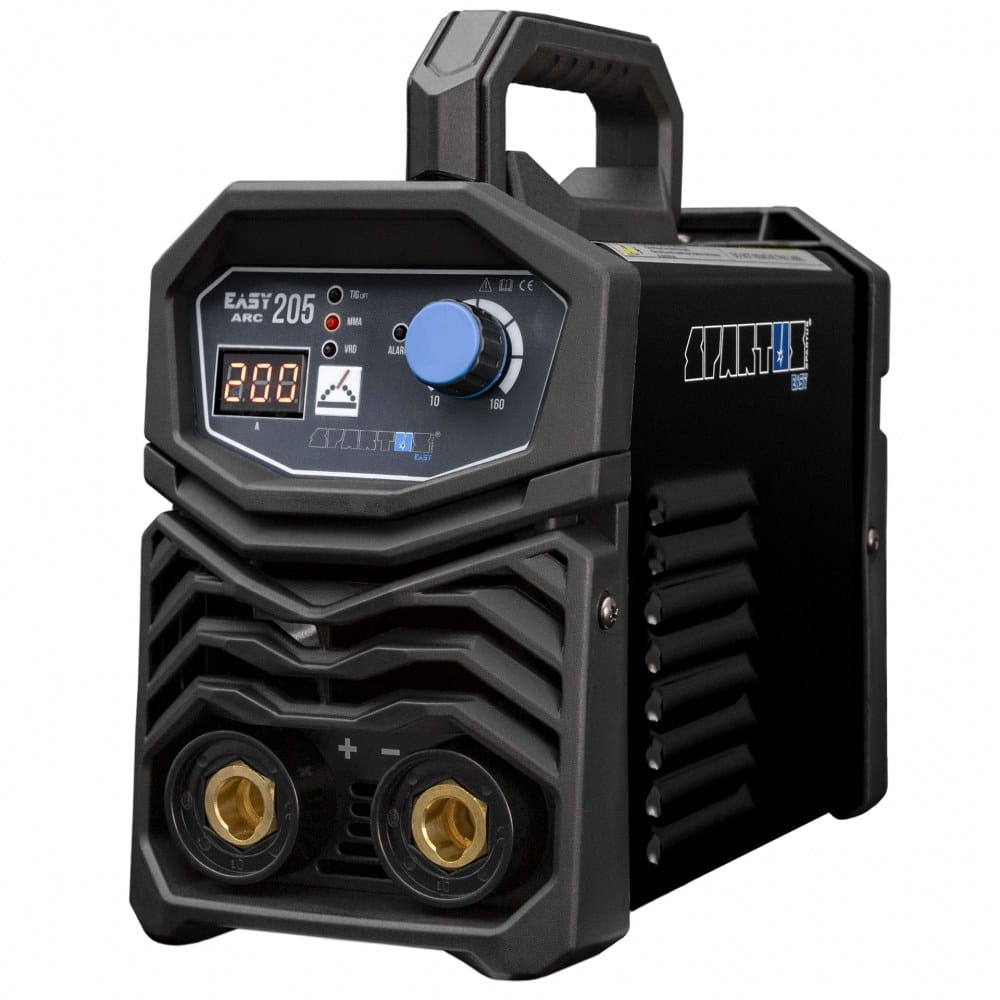

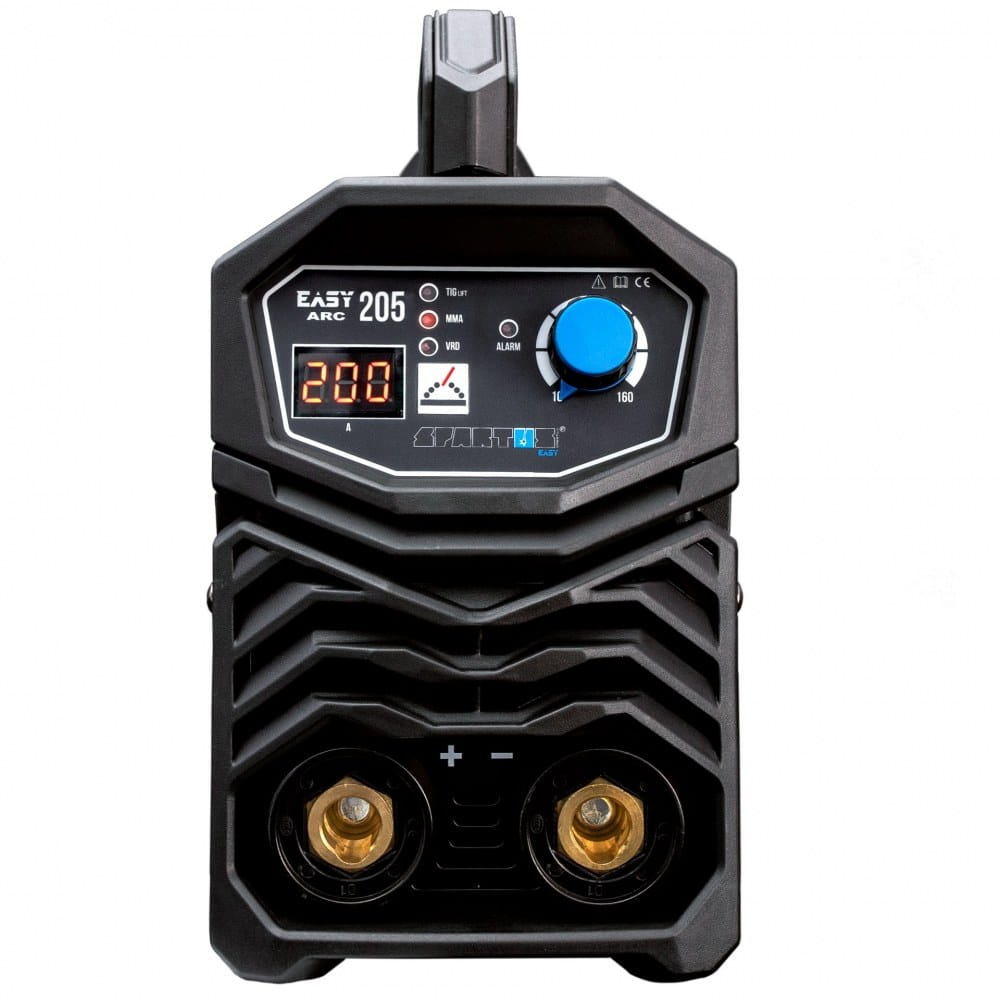

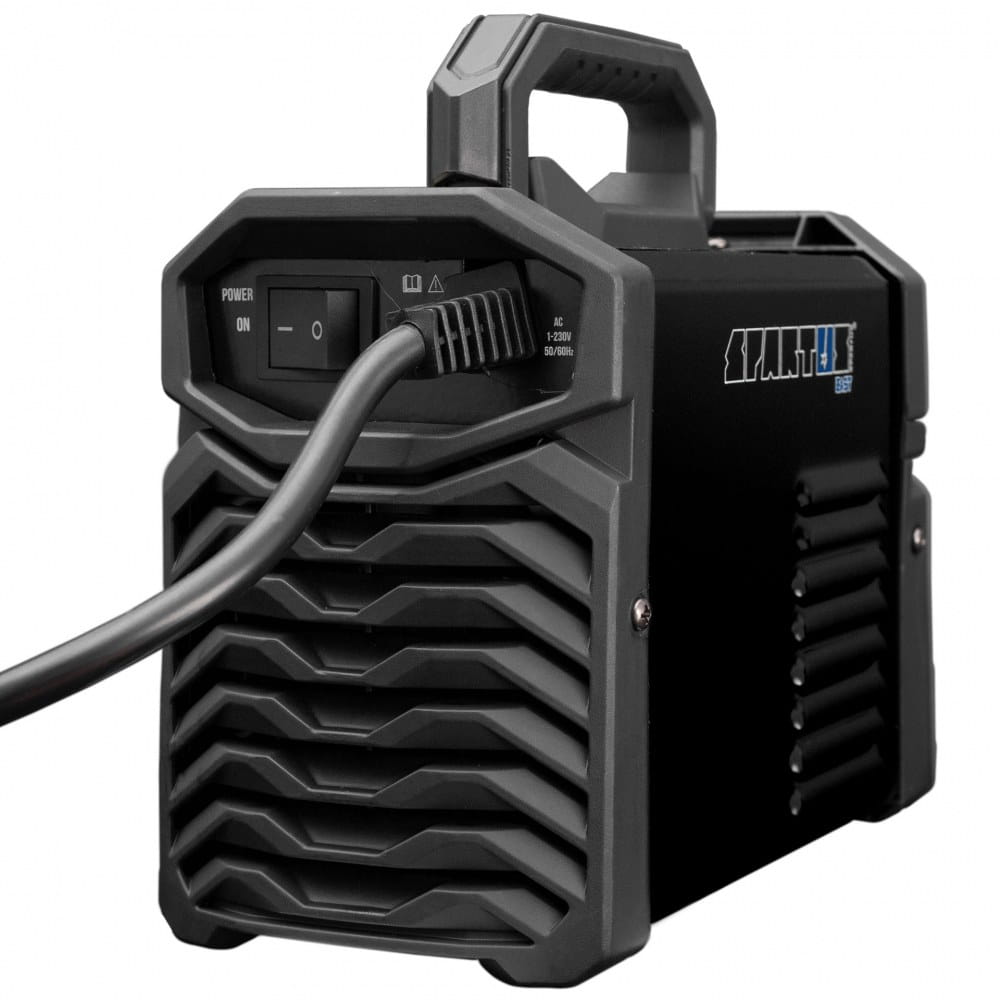

SPARTUS® EasyARC 205 is a compact inverter welding machine based on IGBT transistors. Allows to MMA and TIGLift DC welding. It is powered from single phase 230V source power.

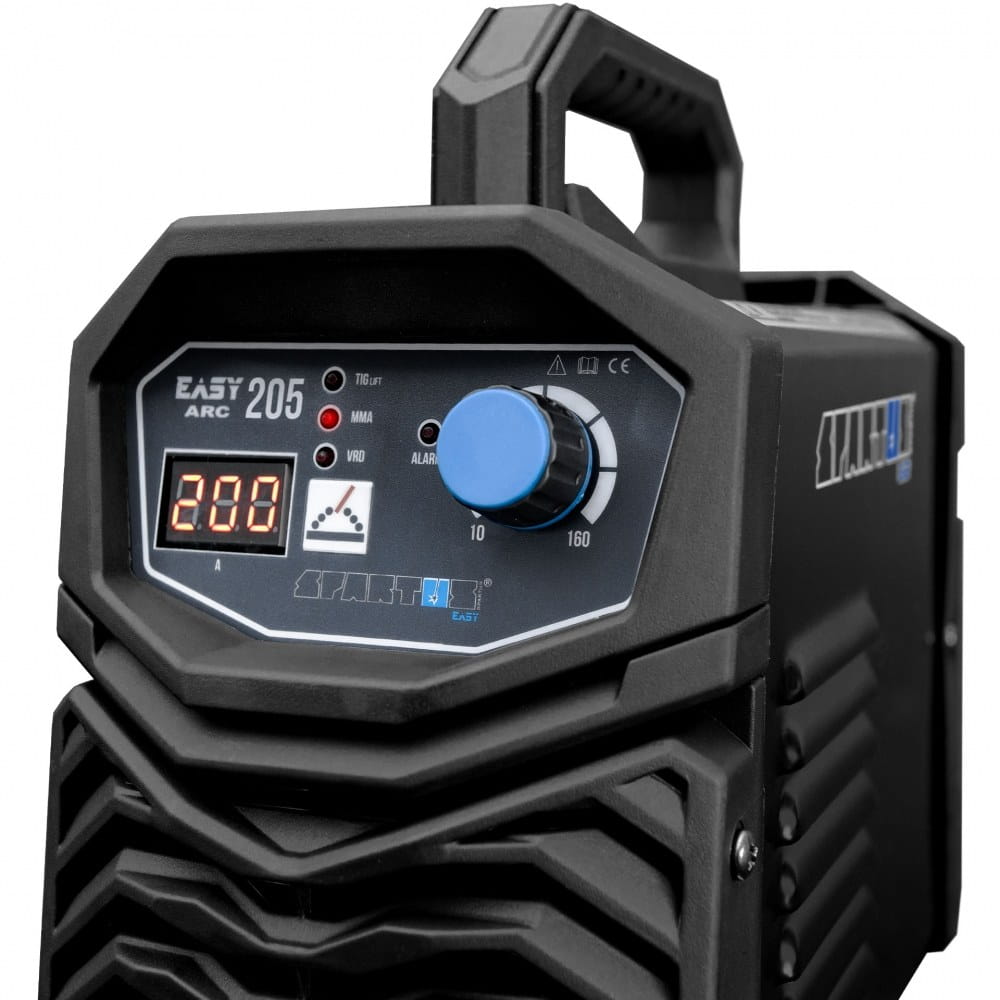

The welding current is in the range between 10 to 200 amps. It has power enough required for welding electrodes diameter up to 4,0 mm. Integral digital display allows to precise control of welding parameters.

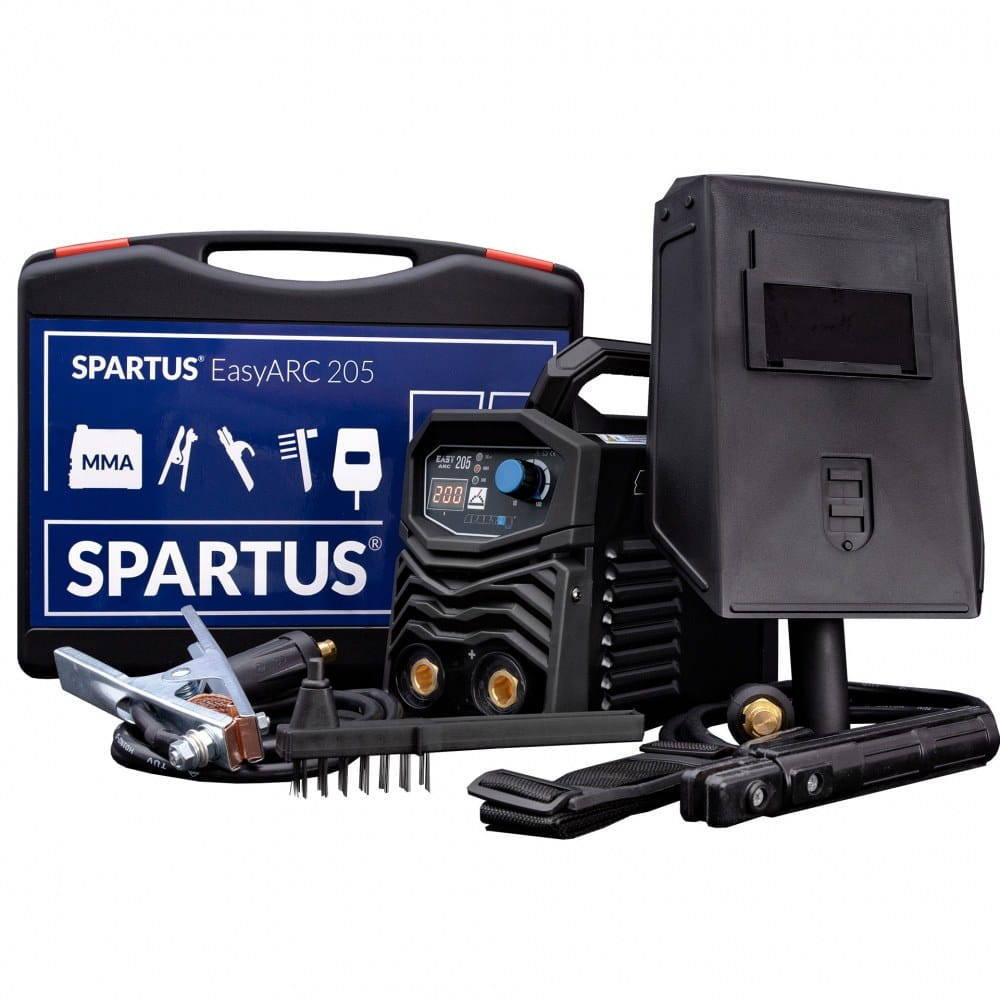

Welder with accessories, can easily fit in a handy suitcase which is included.
Examples of applications: light industry, farm, repair works in the field, workshop.
| # | Attribute type | Attribute value |
|---|---|---|
| 1 | Input | ~1× 230V ± 10% 50 / 60 Hz |
| 2 | MMA duty cycle [%] | 60% |
| 3 | TIG Lift | 1 |
| 4 | MMA welding current | 10 - 200A |
| 5 | Power factor (cosφ) | 0.76 |
| 6 | Efficiency η | 85% |
| 7 | Insulation class | H |
| 8 | Protection class | IP21S |
| 9 | Weight | 4kg |
| 10 | Dimensions | 270 x 130 x 200mm |
| 11 | VRD | 1 |
| 12 | No-load voltage | 82V |
| 13 | Current consumpiton | 42A |
