EasyCUT 40 Compressor [built-in compressor] package

Go to Product feedback

EasyCUT 40 Compressor [built-in compressor] package

Go to full description
Price €1,249.00
pcs
Availability:
running out
Shipping time: 5 days

Description

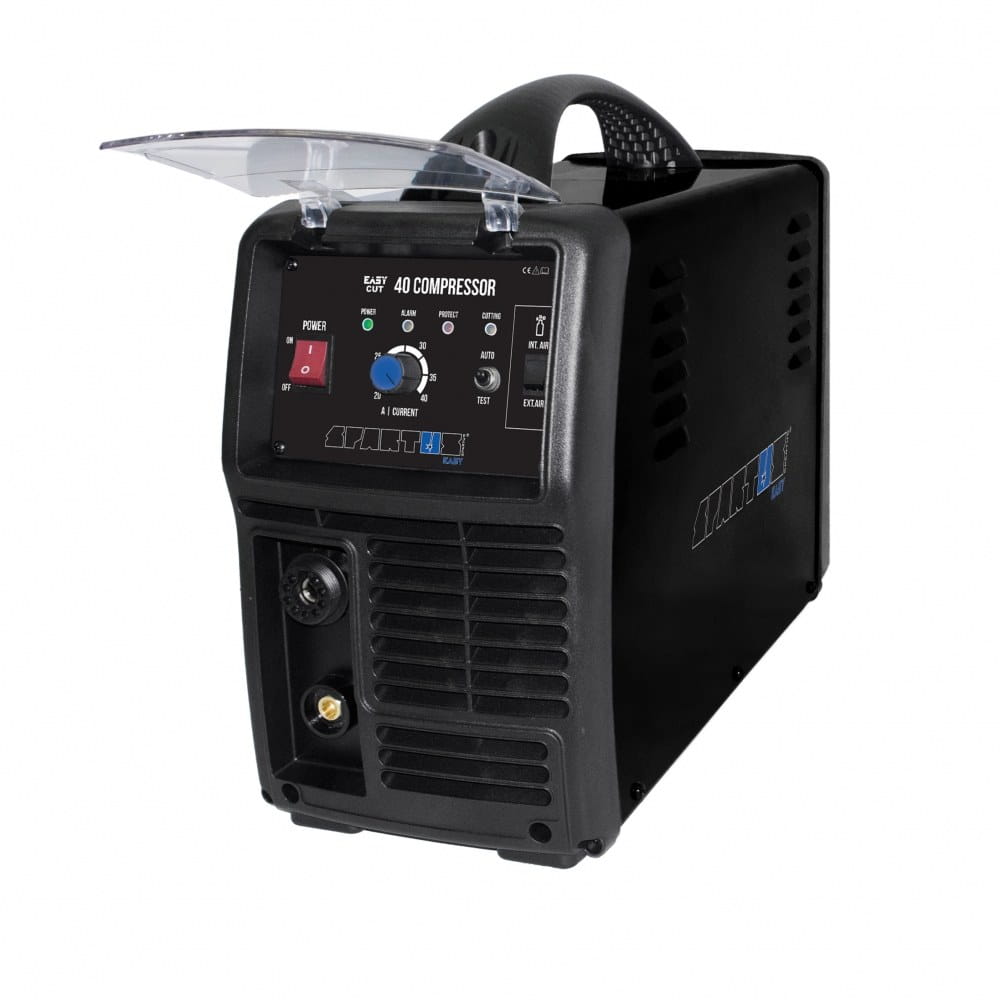

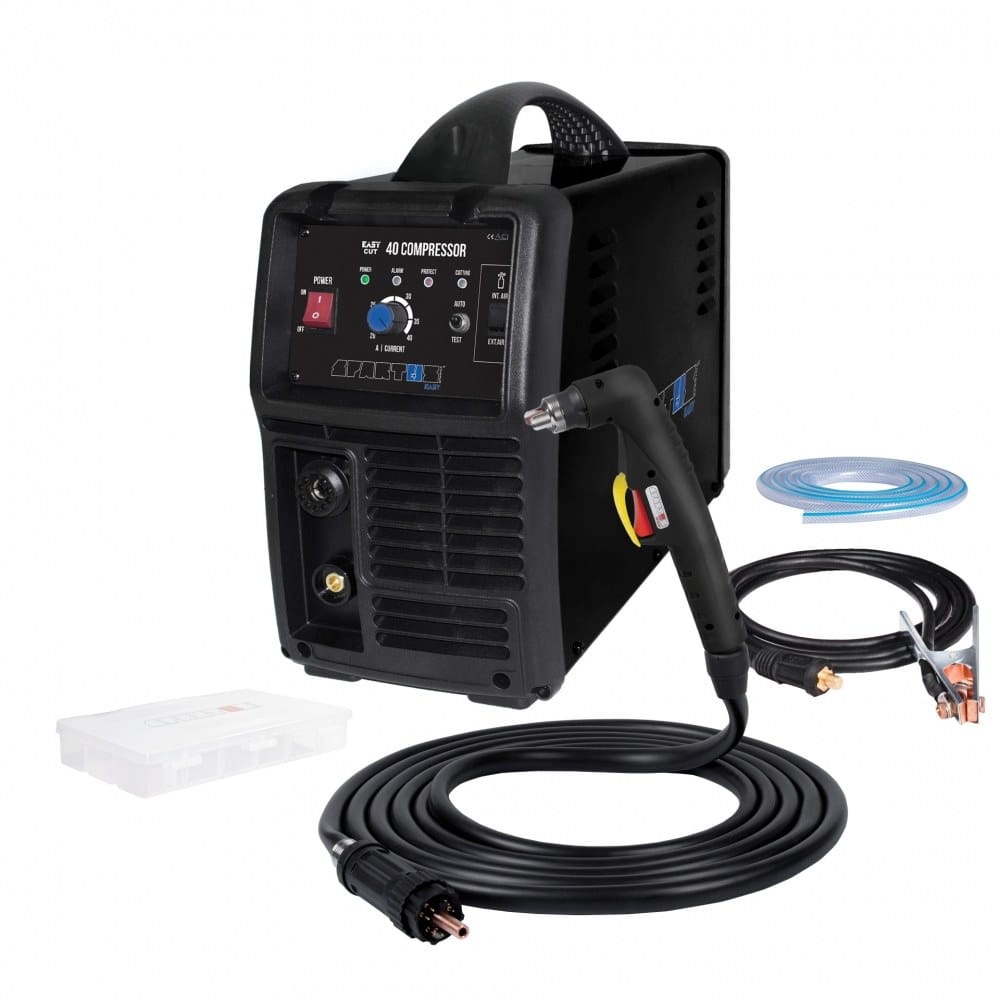

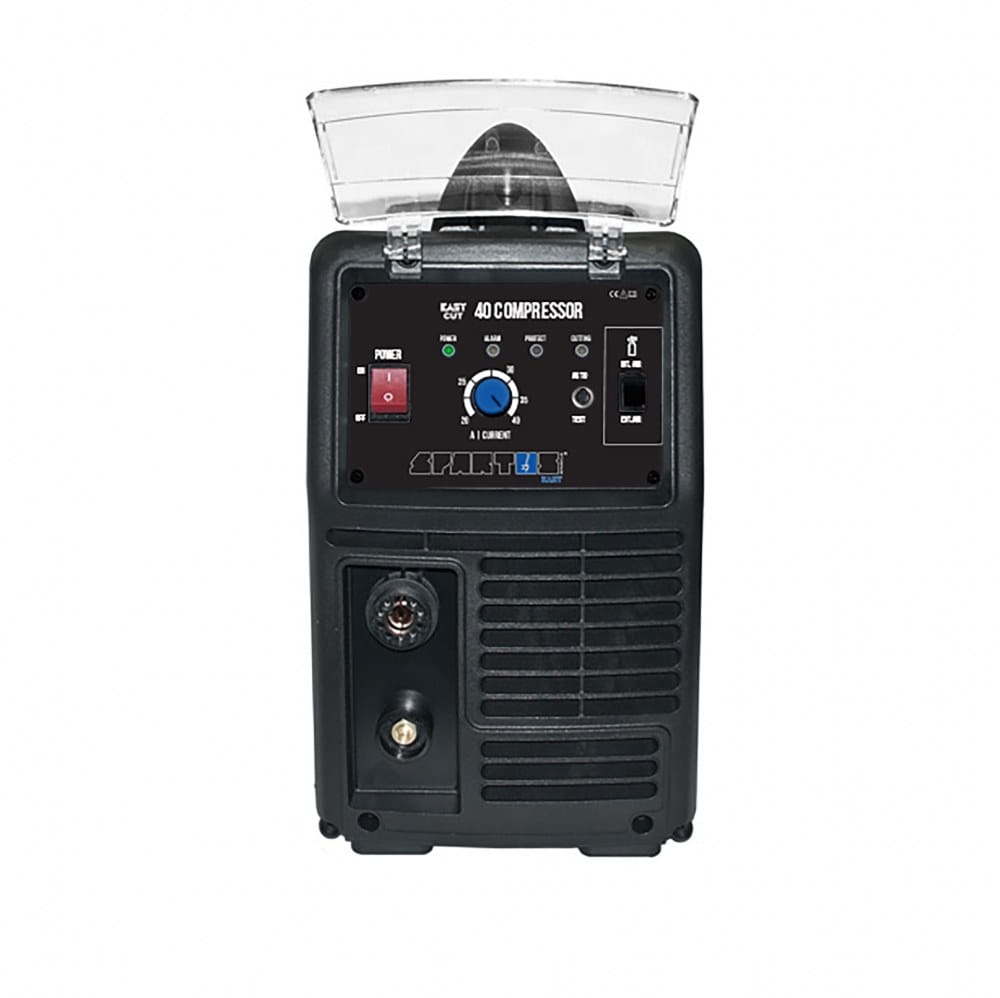

LIGHT, MOBIL PLASMA CUTTER WITH BUILT-IN COMPRESSOR



SPARTUS® EasyCUT 40 Compressor is a small size, compact plasma cutter with built-in compressor of compressed air. Changing the source of compressed air is done through a switch on the front panel of the machine. Designed for cutting metals and other electrically conductive materials.



We’ve created source of power 40A, thanks to use modern technology. Its maximum of cutting thickness is 25 mm. Built-in compressor gives compressed air, which is needed to make a plasma arc.



The SPARTUS® EasyCUT 40 Compressor cutter is equipped with a built-in compressor that enables field work. Changing the compressed air supply is done through a switch on the front panel. An integrated internal compressor supplies the compressed air necessary to create a plasma arc.



SPARTUS® EasyCUT 40 Compressor machine is equipped with the many of modern solutions to support the process of plasma cutting. Built-in system of contactless pilot arc ignation without HF – ensures excellent quality of cutting and longer life of consumables.


# Attribute type Attribute value
1 Input ~1× 230V ± 10% 50 / 60 Hz
2 Cutting current 20 - 40A
3 Max. cutting thickness 25mm
4 Duty cycle 60%
5 Output working voltage 96V
6 Recommended work pressure 5bar
7 Air consumption 150l/min
8 Gas post flow 1
9 Pilot arc ignition without HF
10 Power factor (cosφ) 0.7
11 Efficiency η 85%
12 Insulation class H
13 Protection class IP23
14 Weight 19,5kg
15 Dimensions 590 x 225 x 410mm
16 Current consumpiton 32A
