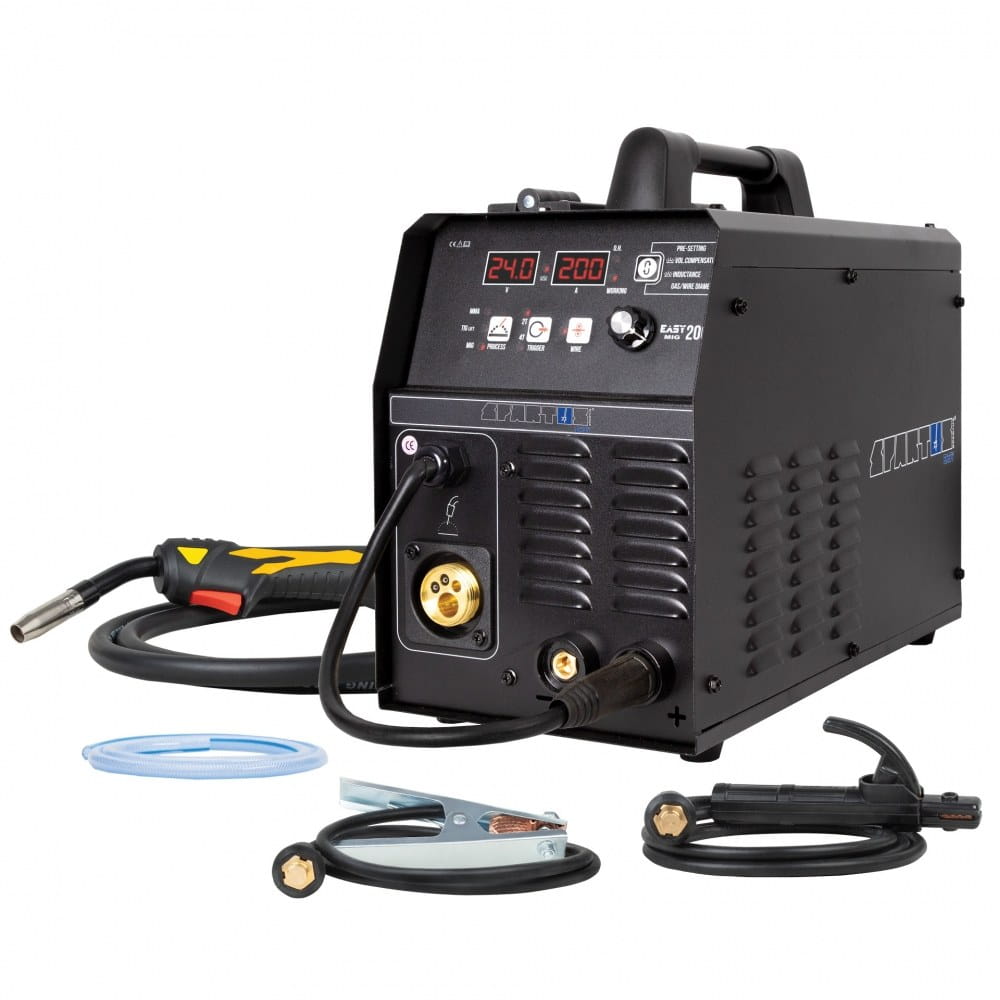

EasyMIG 200 package
Leave feedback on the product
EasyMIG 200 package
Product code: EASYMIG200-PAK-15-3
Description
SYNERGIC MIG 3 in 1

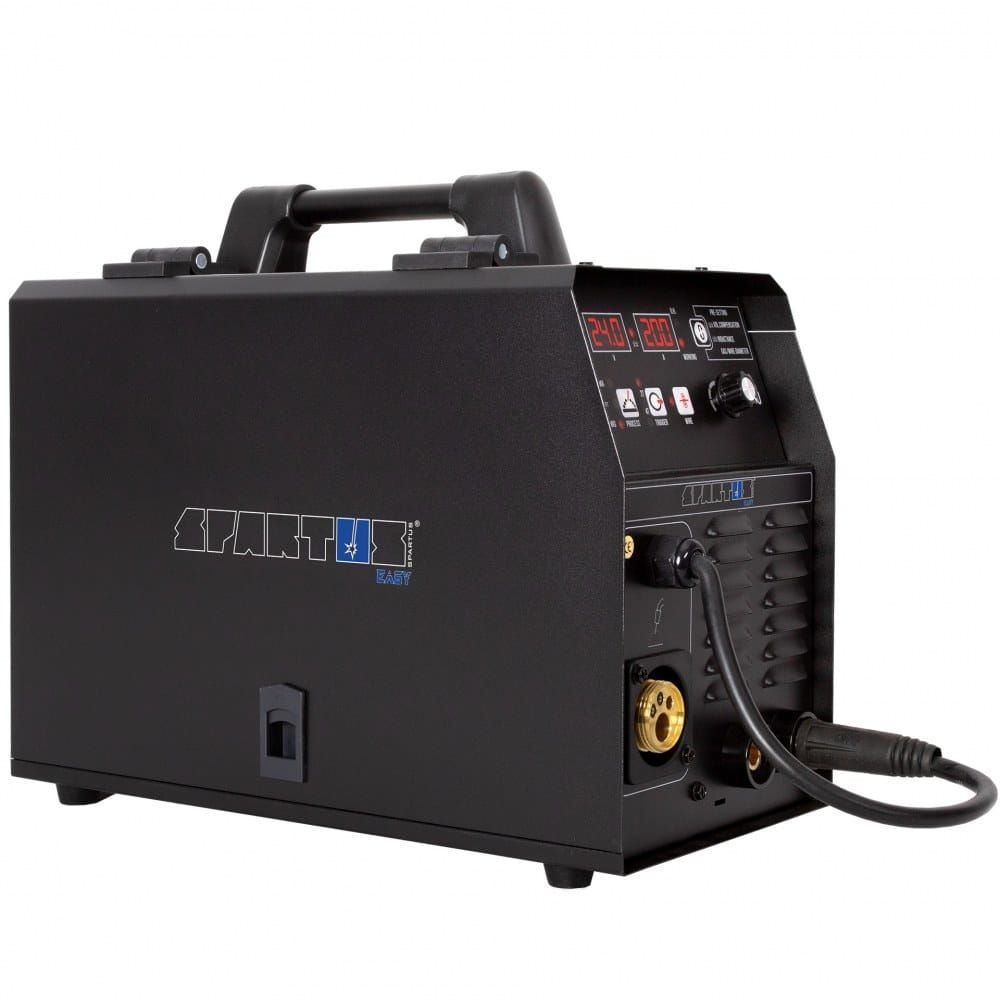

SPARTUS® EasyMIG 200 is a semi-automatic welding machine made in inverter technology. Allows welding in an inert and active gas shield (MIG/MAG), coated electrode (MMA) and TIG Lift with arc ignition.
Maximum welding current for MIG method is 200A, and for MMA and TIG Lift – 160A. The unit is powered from a single-phase network 230V.

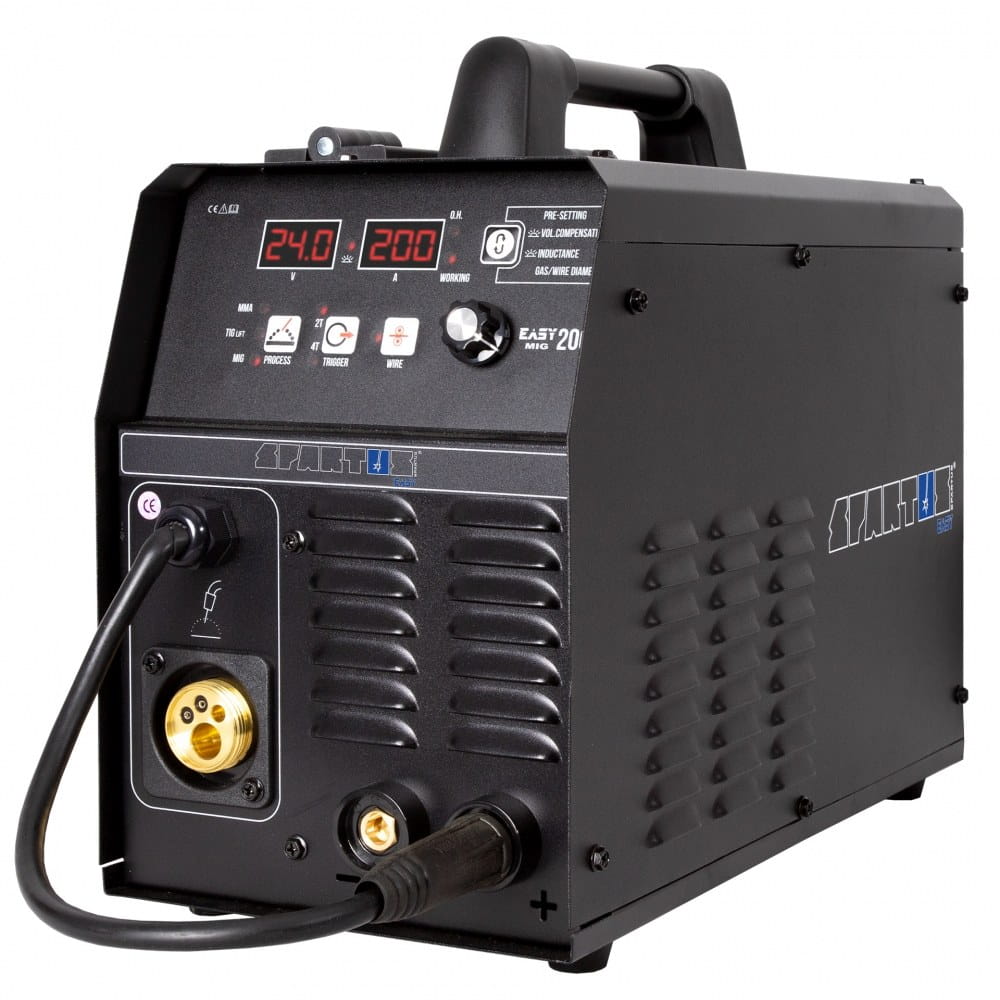

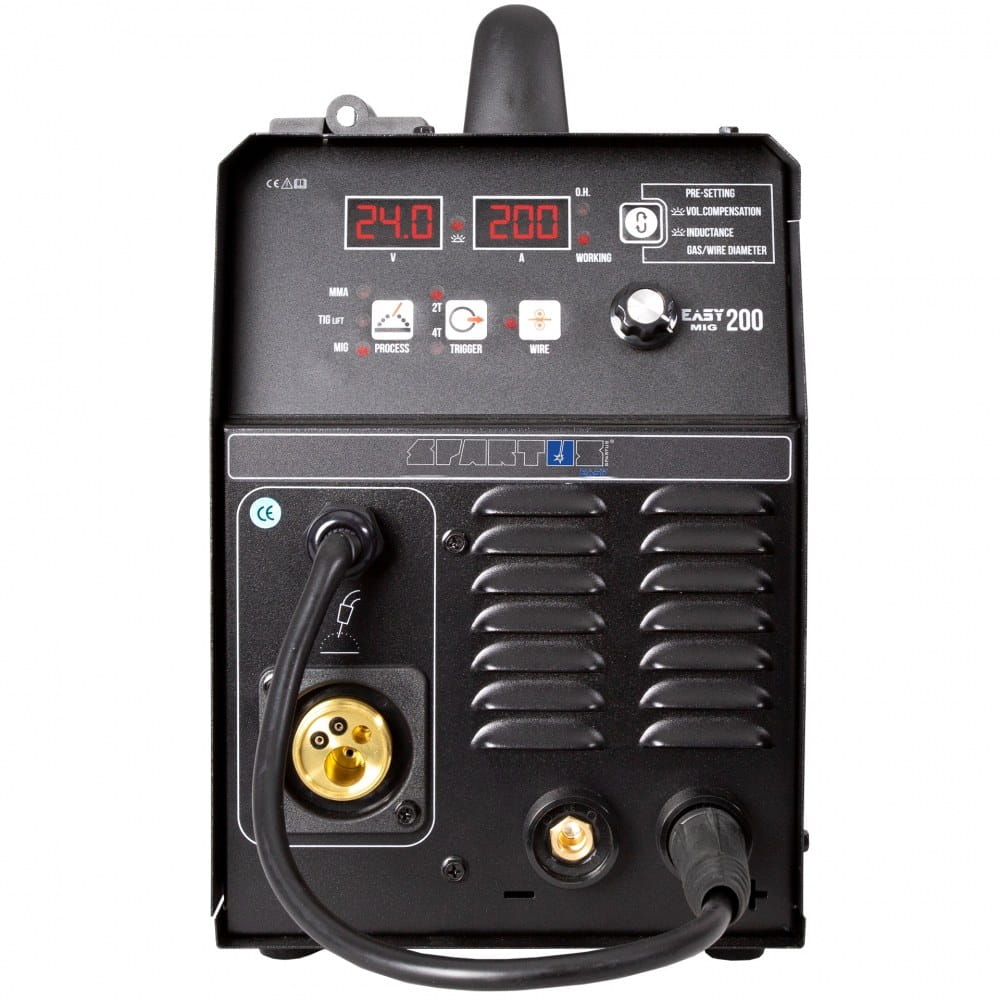

The easy-to-use control panel allows for quick adjustment of welding parameters. EasyMIG 200 is characterized by a simple synergy in which only the wire diameter is determined for the selected gas. The machine has functions supporting the welding process:
- 2T/4T,
- Burn Back,
- inductance adjustment,
- voltage compensation.

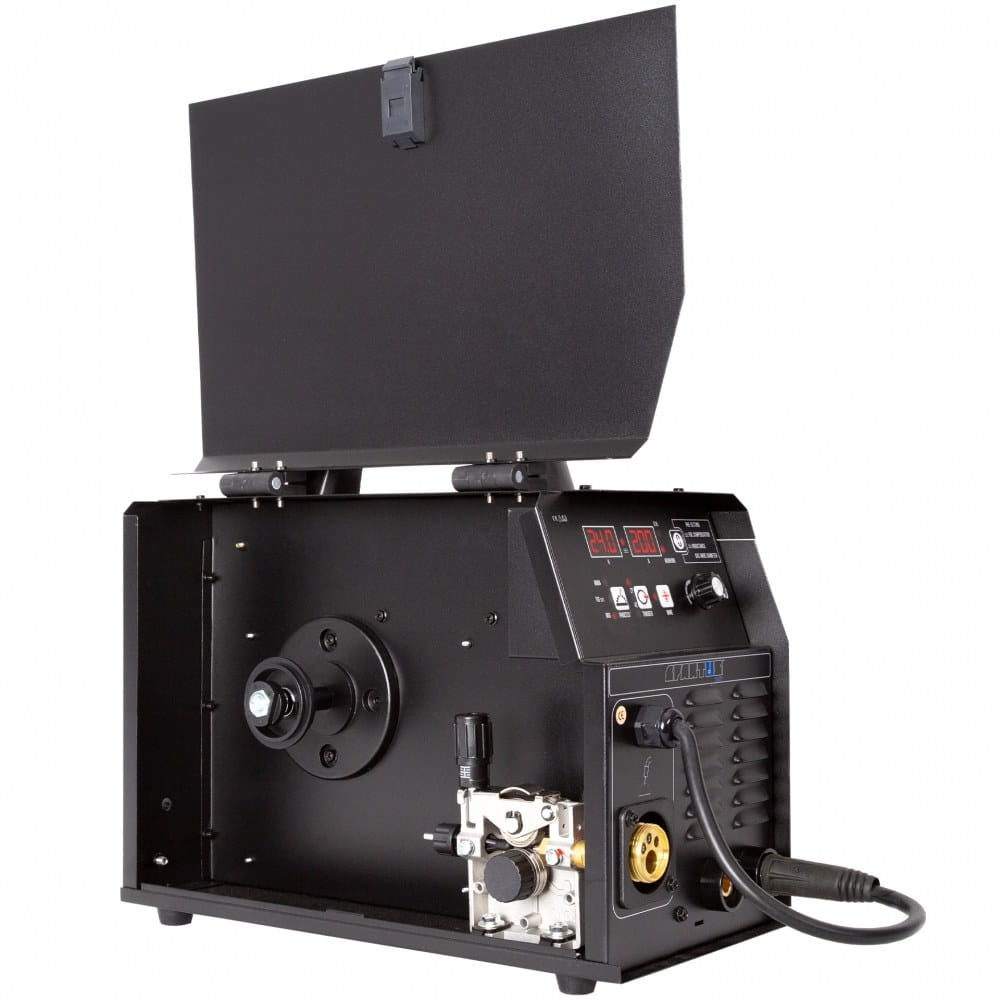

Light EasyMIG is equipped with a two-roll welding wire feeder, which ensures smooth and even feeding of the welding wire. Exemplary applications: workshop works, outside site repairs, automotive.
| # | Attribute type | Attribute value |
|---|---|---|
| 1 | Input | ~1× 230V ± 10% 50 / 60 Hz |
| 2 | Wire diameter | 0.6, 0.8, 1.0mm |
| 3 | MIG welding current | 40 - 200A |
| 4 | MIG duty cycle | 60% |
| 5 | Output working voltage | 16 - 24V |
| 6 | Wire feeder | built-in, 2-roll gear |
| 7 | Wire feeding speed | 3 - 18m/min |
| 8 | Welding wire spool | ≤ 5kg / ∅200mm |
| 9 | Synergy | 1 |
| 10 | TIG Lift | 1 |
| 11 | 2T/4T Control | 1 |
| 12 | TIG welding current | 20 - 160A |
| 13 | MMA welding current | 20 - 160A |
| 14 | Power factor (cosφ) | 0.93 |
| 15 | Additional MIG functions | Burn Back | Pre-gaz | Post-gaz | regulacja indukcyjności |
| 16 | Efficiency η | 85% |
| 17 | Insulation class | F |
| 18 | Protection class | IP21S |
| 19 | Weight | 10kg |
| 20 | Dimensions | 400 x 195 x 270mm |
| 21 | Down slope | 60% |
| 22 | Current consumpiton | MIG 26.4A / TIG 14.4A / MMA 23.2A |
