EasyMIG 225 package
Leave feedback on the product
EasyMIG 225 package
Product code: EASYMIG225-PAK-15-3
Description
SYNERGIC MIG WITH LCD DISPLAY

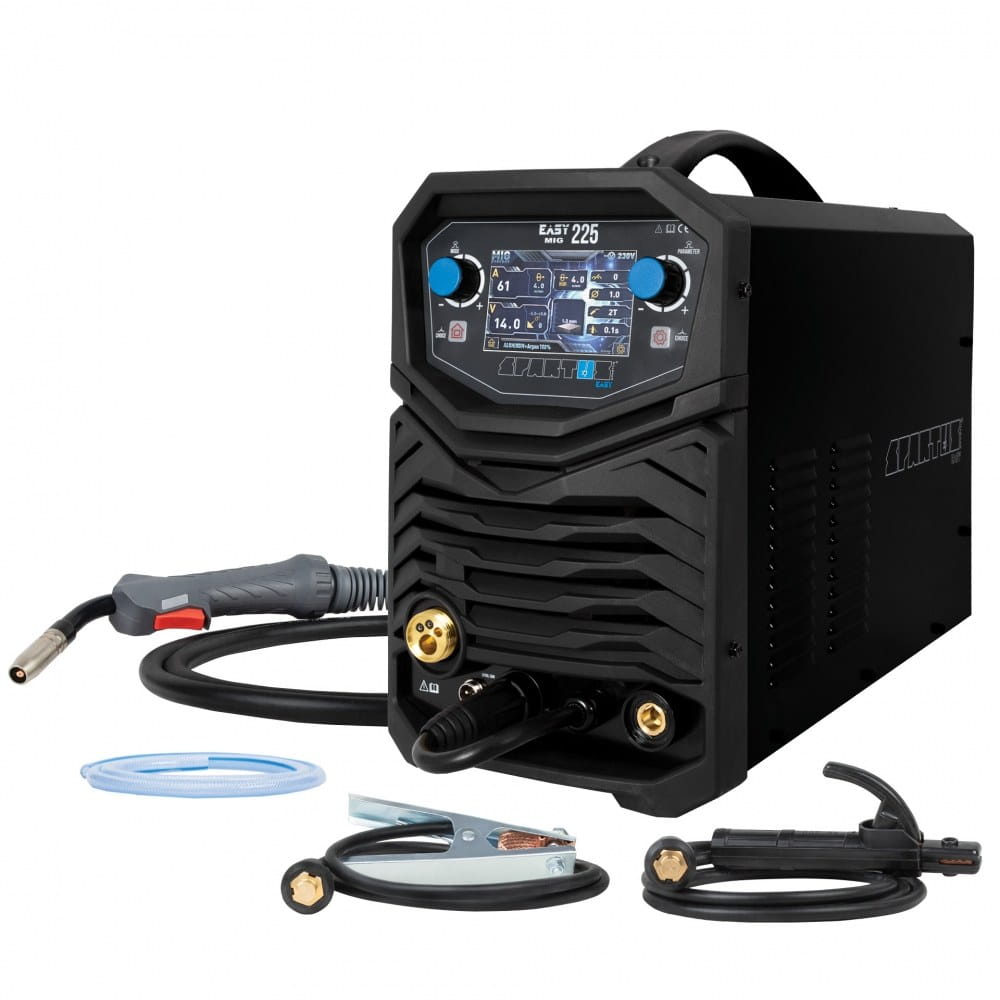

SPARTUS® EasyMIG 225 is a modern, inverter welding semi-automatic machine, based on IGBT transistors. It enables welding by means of a consumable electrode shielded by inert (MIG) or active (MAG) gases, welding with coated electrode (MMA) and TIG lift welding. In addition, the machine thanks to the ability to change the polarity of welding, enables welding with flux cored welding wire without gas.
SPARTUS® EasyMIG 225 is equipped in synergy system for MIG/MAG welding with steel wire of 0.6 / 0.8 /1.0 mm diameter and 1.0mm aluminium wire with the ability to manually change parameters. You can choose the following programs: CO2 steel, mixed steel, aluminium, core wire welding.
The machine works also in manual welding mode. Easy change of polarity allows a gas-free self-shielding wire welding.
Thanks to the use of modern technological solutions, the welder is equipped with a number of functions supporting the welding process:
welding inductivity regulation — face fusion width and deep control (MIG/MAG), reduction of welding splinters
Hot Start – an easier electrode ignition (MMA)
Arc Force – an easier welding in forced positions (MMA)
VRD – reduced no-load voltage (MMA)

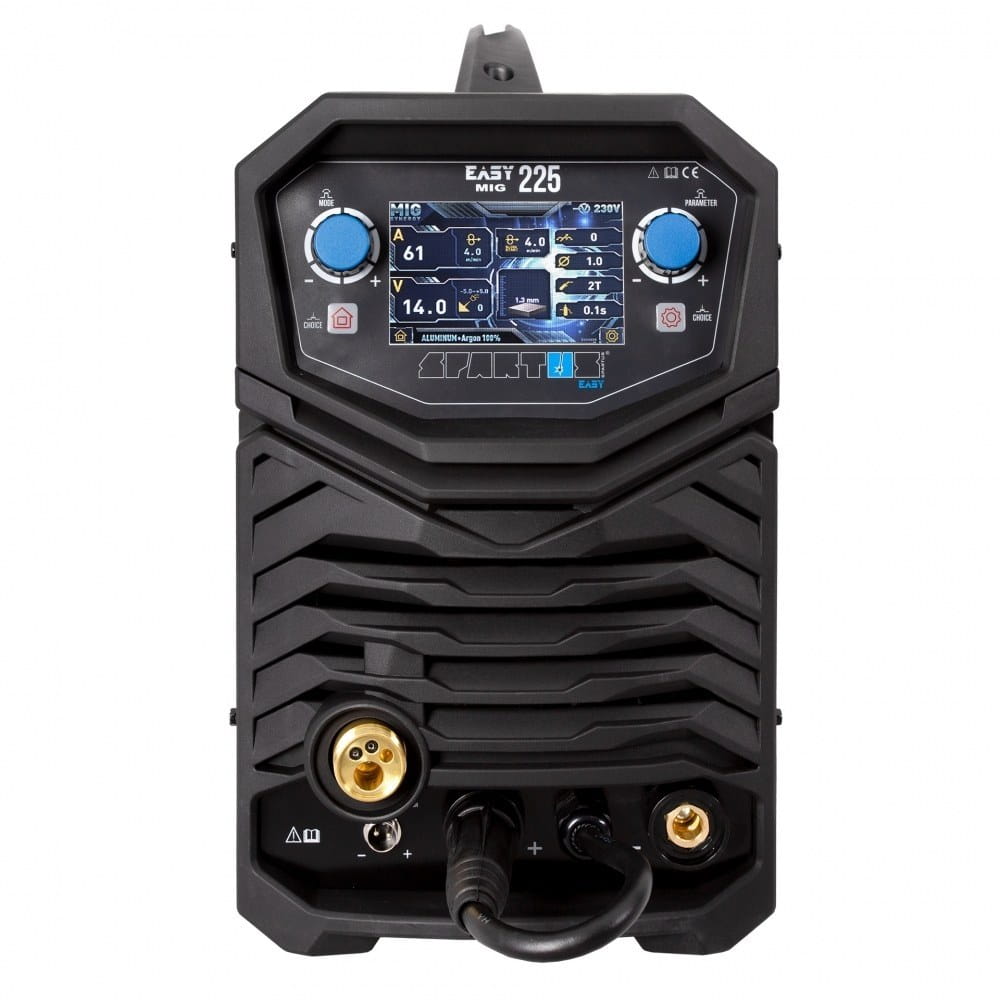

The modern LCD allows an easy and quick setting of the welding voltage and to manage the machine functions. When the parameters are corrected, the display suggests the weld shape and shows graphically the recommended thickness of the material for the given current.

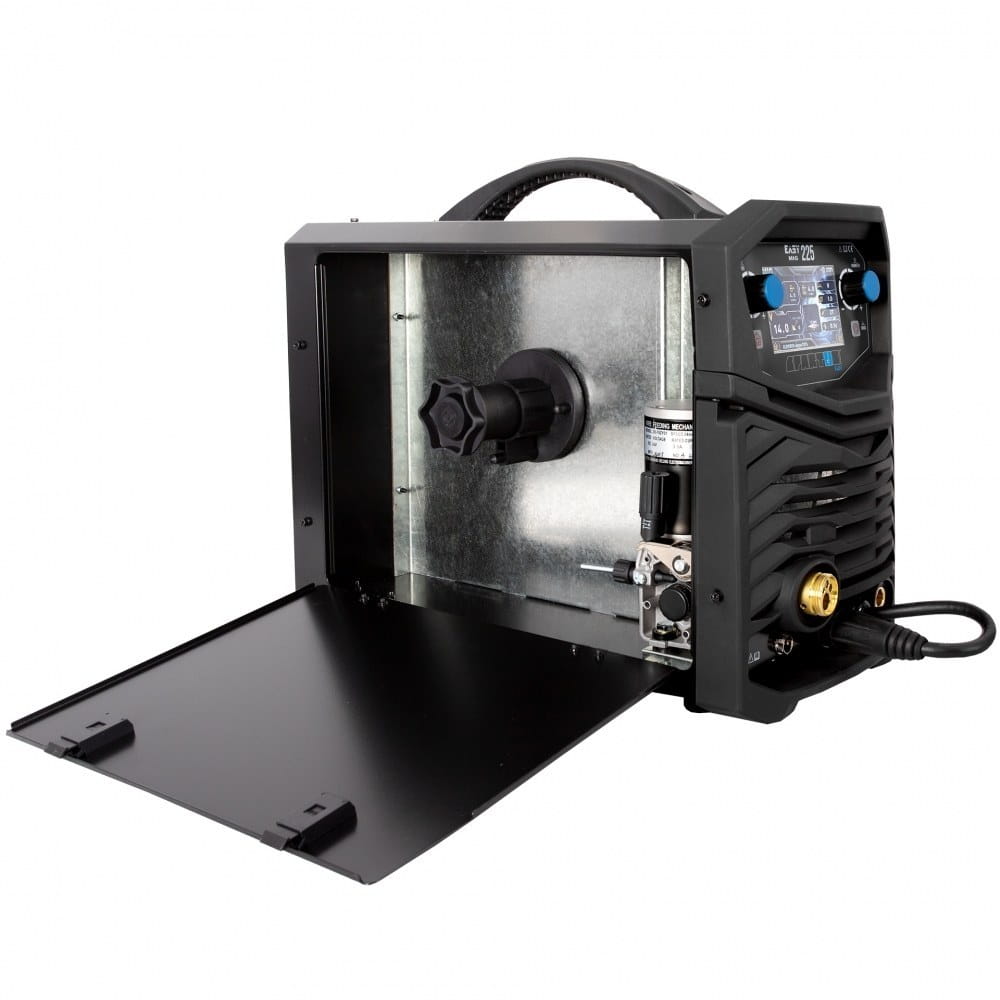

The high-grade two-roller wire feeder provides stable feeding of steel wire, stainless steel wire and aluminium wire. Despite the small compact size and weight, the machine is compatible with standard spools with welding wire D200 and D300 weighing up to 15kg. Stable output parameters guarantee proper weld quality.
Examples of use: workshop, portable repair, automotive, exhaust silencer welding.
| # | Attribute type | Attribute value |
|---|---|---|
| 1 | Input | ~1× 230V ± 10% 50 / 60 Hz |
| 2 | Wire diameter | 0.6, 0.8, 1.0mm |
| 3 | MIG welding current | 50 - 220A |
| 4 | MIG duty cycle | 60% |
| 5 | Output working voltage | 16.5 - 25V |
| 6 | Wire feeder | built-in, 2-roll gear |
| 7 | Wire feeding speed | 2 - 12.5m/min |
| 8 | Hot Start | 1 |
| 9 | Welding wire spool | ≤ 15kg / ∅200/300mm |
| 10 | TIG Lift | 1 |
| 11 | Synergy | 1 |
| 12 | 2T/4T Control | 1 |
| 13 | TIG welding current | 10 - 220A |
| 14 | MMA welding current | 10 -200A |
| 15 | Additional MIG functions | regulacja indukcyjności | spool gun | test drutu | zmiana biegunowości |
| 16 | Power factor (cosφ) | 0.76 |
| 17 | Efficiency η | 85% |
| 18 | Insulation class | H |
| 19 | Protection class | IP21S |
| 20 | Weight | 19kg |
| 21 | Dimensions | 570 x 265 x 460mm |
| 22 | VRD | 1 |
| 23 | Arc Force | 1 |
| 24 | Current consumpiton | MIG 37A / TIG 28A / MMA 39A |
