EasyTIG 200P AC/DC

SPARTUS^® EasyTIG 200P AC/DC is digitally controlled inverter welding machine, constructed on the basis of IGBTs and PWM technology. Allows welding AC/DC TIG  and AC/DC MMA. It is powered with single-phase 230V source power.



Machine enables two methods of arc ignition: TIG HF and TIG Lift. In addition, it has a built-in pulse welding function, which is useful to join very thin elements.

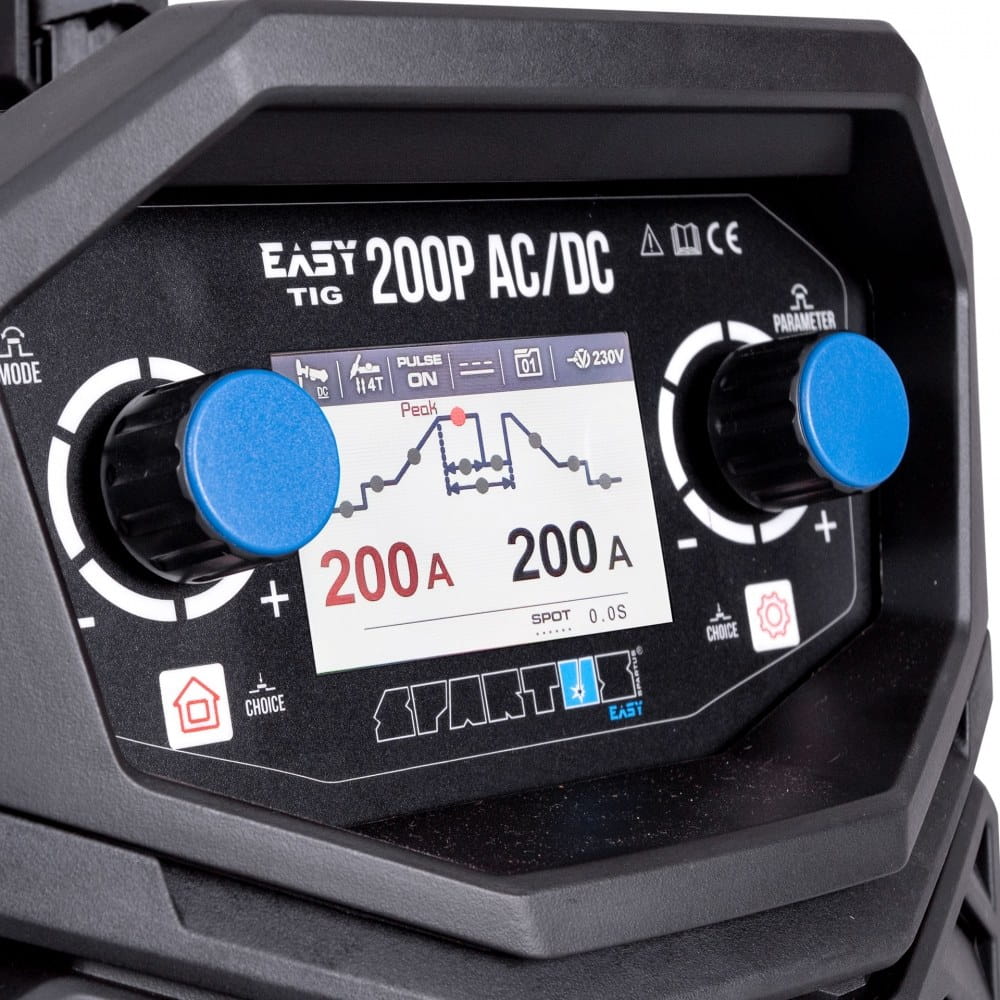

The easy-to-use function panel allows precise control of all the most important welding parameters. The modern display, using the TIG function waveform, facilitates the management of advanced parameters:



-pre-gas and post–gas,

- start amps, peak current and end amps,

- up slope and down slope,

- AC frequency (with mileage control),

- AC balans (20 – 80%),

- SPOT welding

and during welding with pulsed current:



- pulse width ( 5-100%),

- base current (10-200A),

- pulse frequency (0.5 – 200Hz).



Depending on the welder’s preferences EasyTIG 200P AC/DC can work in 2T or 4T mode.

MMA welding mode (to 200A) is assisted by functions: Arc Force and Hot Start.

The machine has 6 channels on which you can set and save your own welding parameters in the device memory.

SPARTUS^® EasyTIG 200P AC/DC  is designed and manufactured in order to fieldwork. Despite its small dimensions and weight, it allows for advanced welding TIG method.

Examples of use: portable repair, workshop, maintenance, light constructions.
