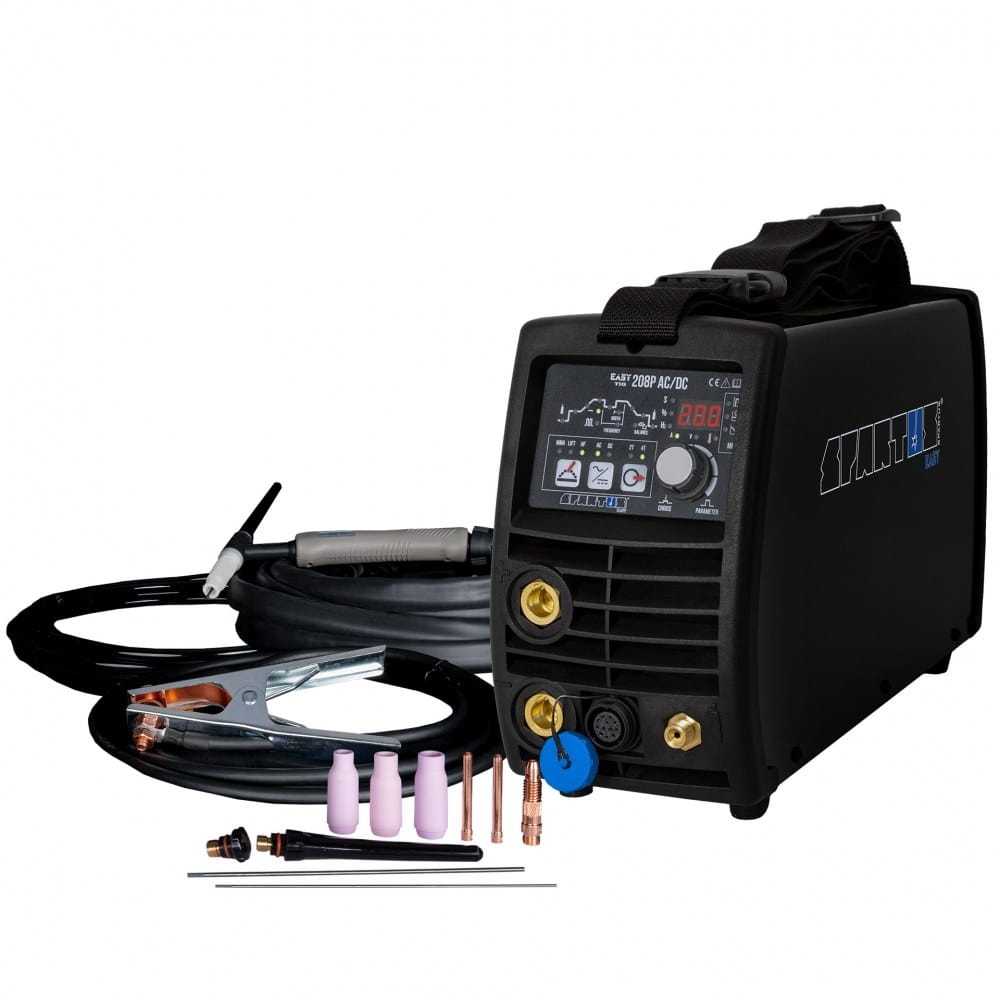

EasyTIG 208P AC/DC package
Product code: EASYTIG208PACDC-PAK-17-4
Description
LIGHTWEIGHT TIG AC/DC PULS

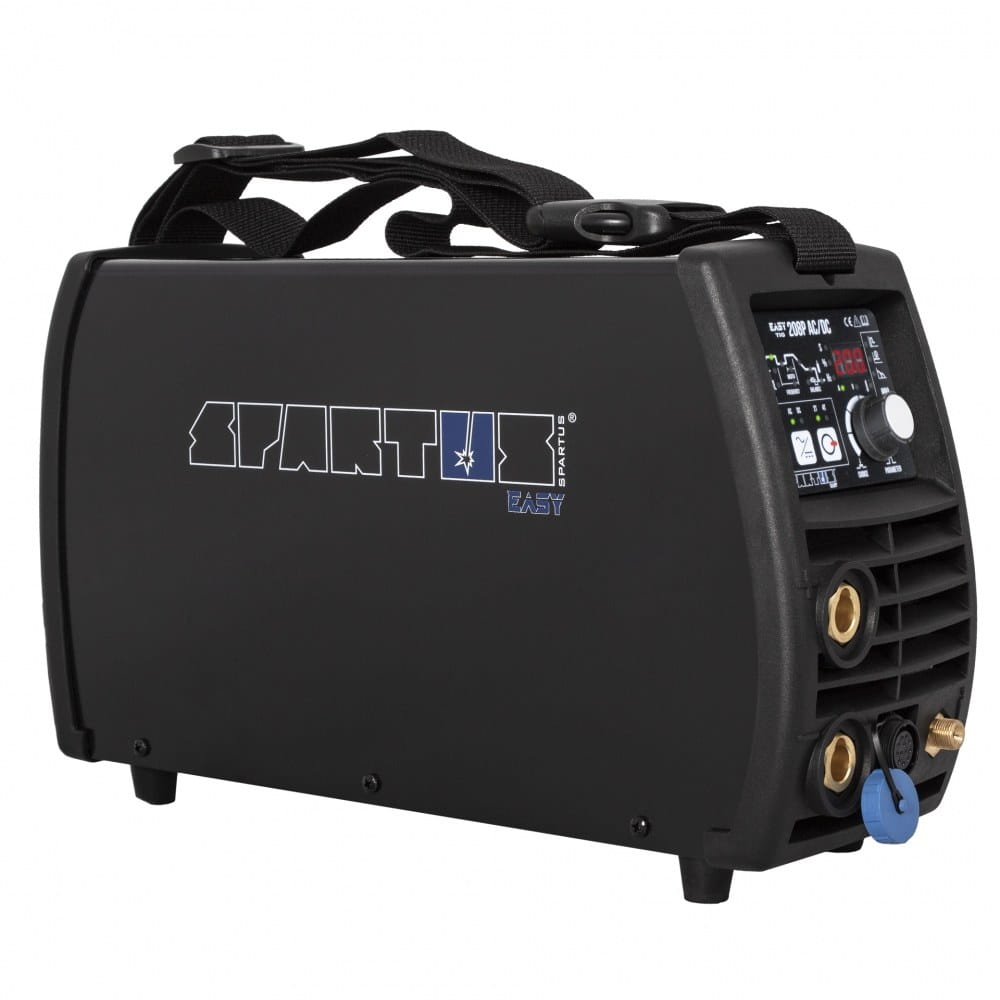

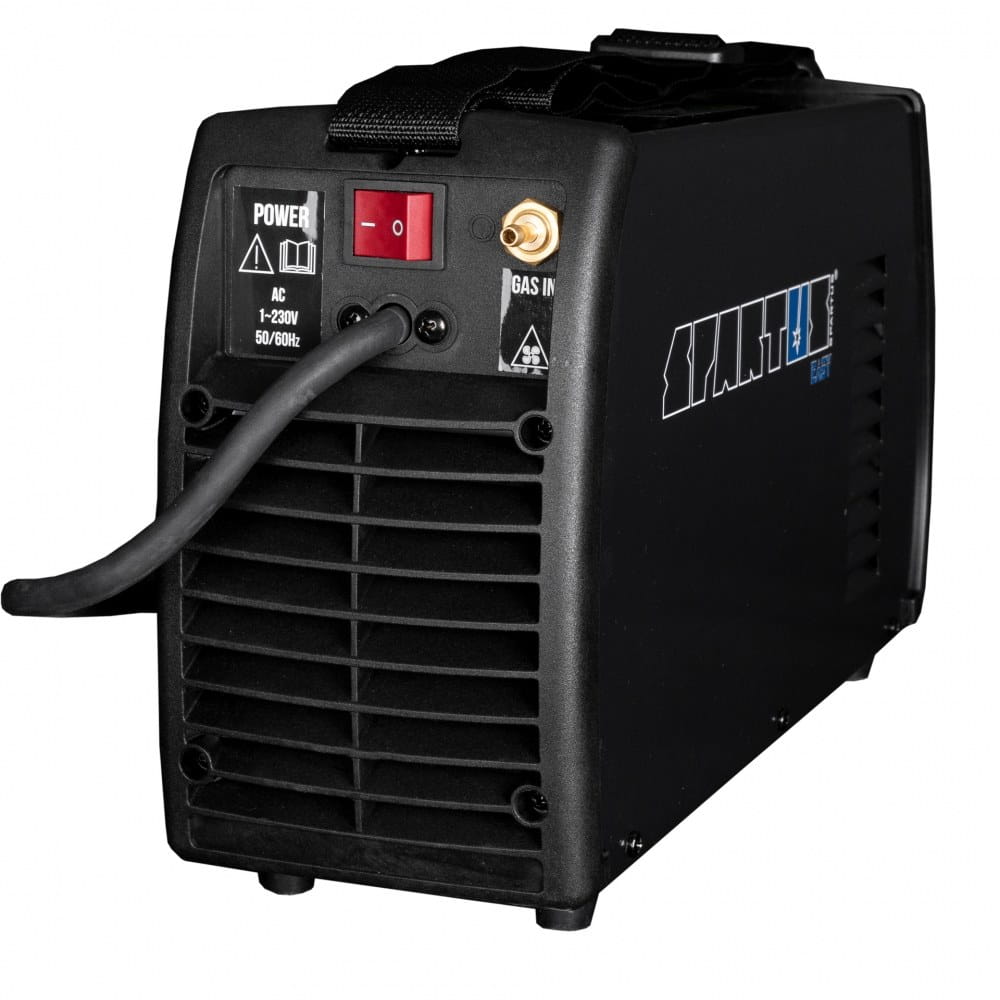

SPARTUS® Easy TIG 208P AC/DC is a modern digitally controlled inverter welding machine, constructed on the basis of IGBTs. Allows welding TIG AC/DC and MMA AC/DC modes. It is powered with single-phase 230V source power.

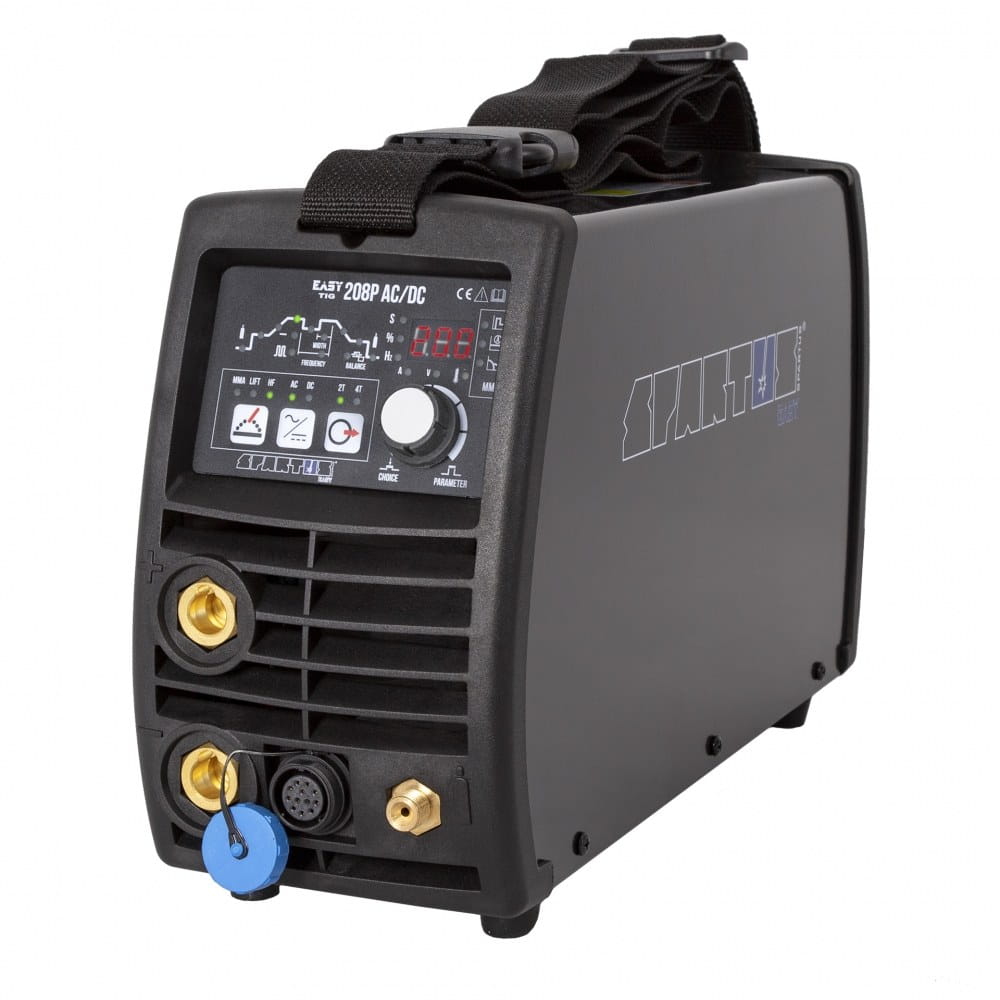

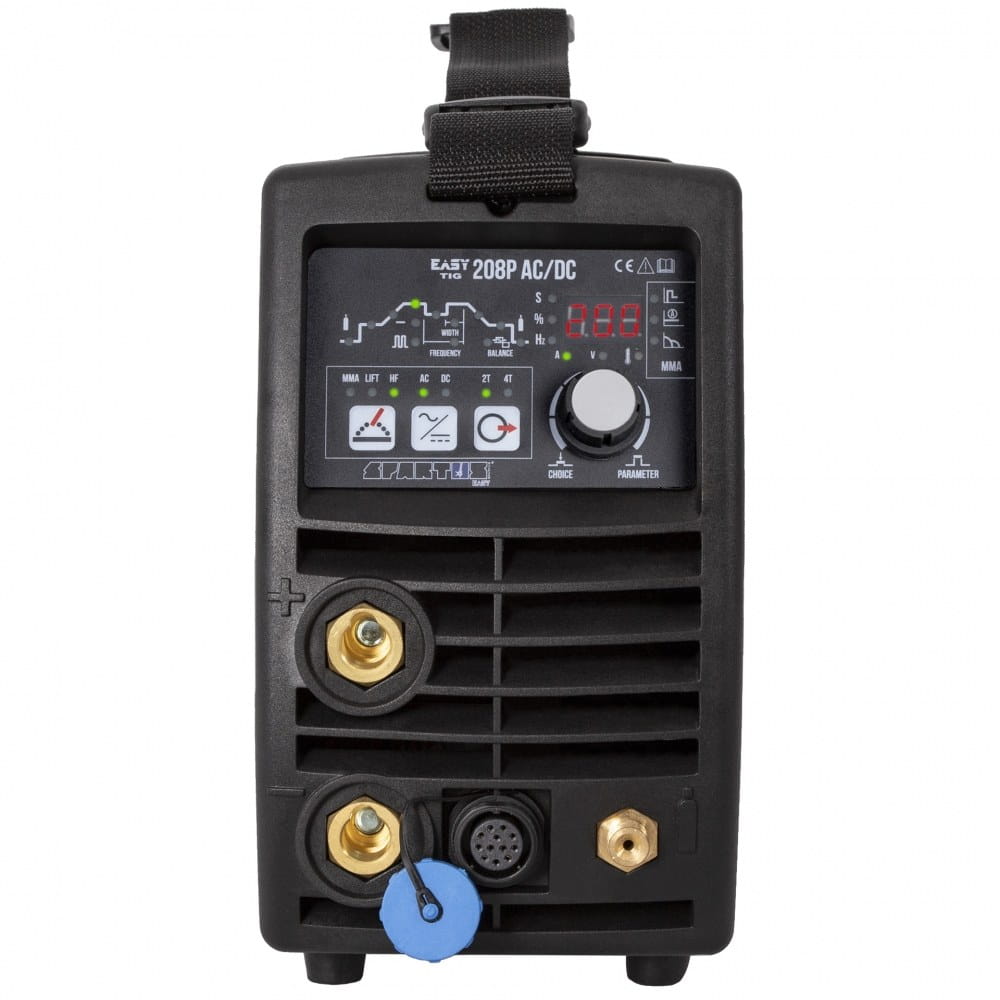

Easy-to-use digital control panel provides instant access to the welding machine’s functions.
EasyTIG 208P AC/DC enables two methods of arc ignition:TIG HF (high frequency) and TIG Lift (with scratch ignition). A diagram of TIG parameters on the panel allows for full adjustment:
– gas flow time before and after welding
– up slope and down slope time.
In addition, the built-in pulse welding function (frequency 0.5 – 200Hz) enables adjustment: base amps, pulse amps, pulse frequency. Thanks to these parameters the machine is perfect for joining even very thin sheets.
Depending on the welder’s preferences EasyTIG 208P AC/DC can work in 2T or 4T mode.
EasyTIG 208P AC/DC will work useful during welding aluminum, thanks to the smooth balance adjustment in the range 10 – 99%.
MMA welding mode (to 200A) is assisted by functions: Arc Force and Hot Start.
EasyTIG 208P AC/DC is a perfect machine for production and maintenance.
Examples of use: portable repair, workshop, maintenance, constructions.
| # | Attribute type | Attribute value |
|---|---|---|
| 1 | Input | ~1× 230V ± 10% 50 / 60 Hz |
| 2 | TIG duty cycle | AC 35% / DC 40% |
| 3 | Up slope | 0 - 10s |
| 4 | Hot Start | 1 |
| 5 | Control plug | 9SPA - SPARTUS® |
| 6 | 2T/4T Control | 1 |
| 7 | TIG welding current | AC 10 - 200A / DC 10 - 170A |
| 8 | MMA welding current | AC 10 - 170A / DC 10 - 170A |
| 9 | Power factor (cosφ) | 0.6 |
| 10 | AC wave forms | prostokątny |
| 11 | Efficiency η | 85% |
| 12 | Insulation class | H |
| 13 | Protection class | IP21S |
| 14 | Weight | 8.7kg |
| 15 | Arc ignition | HF |
| 16 | Dimensions | 450 x 135 x 230mm |
| 17 | Gas pre flow | 0 - 2s |
| 18 | Gas post flow | 0 - 10s |
| 19 | Down slope | 0 - 10s |
| 20 | TIG Pulse | 1 |
| 21 | Pulse Amps | AC 10 - 200A / DC 10 - 170A |
| 22 | No-load voltage | 79V |
| 23 | Pulse Width | 5 - 95% |
| 24 | Pulse frequency | 0.5 - 200Hz |
| 25 | AC frequency | 60Hz |
| 26 | AC balance | 10 - 99% |
| 27 | Control options | sterowanie w rękojeści UP&DOWN | sterowanie w rękojeści potencjometr |
| 28 | Arc Force | 1 |
| 29 | Current consumpiton | TIG DC 28A / TIG AC 33A / MMA DC 41A / MMA AC 39A |
