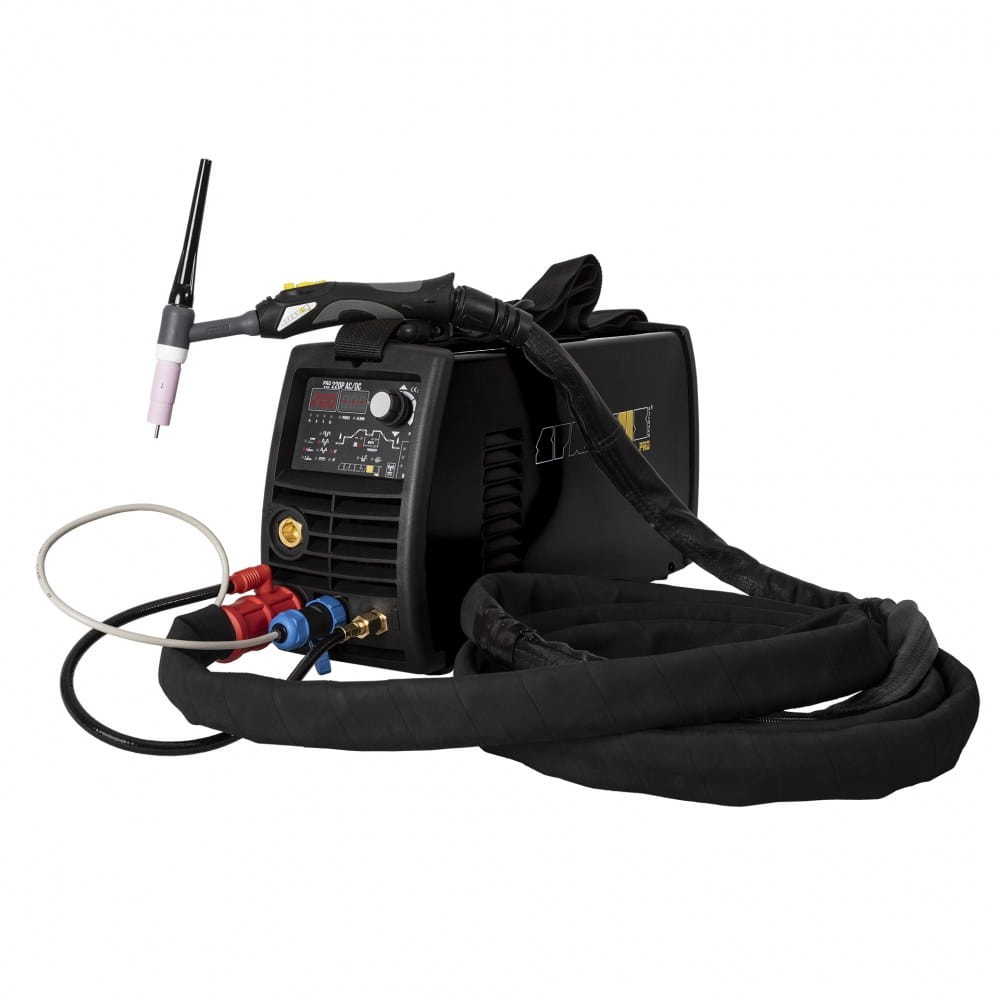

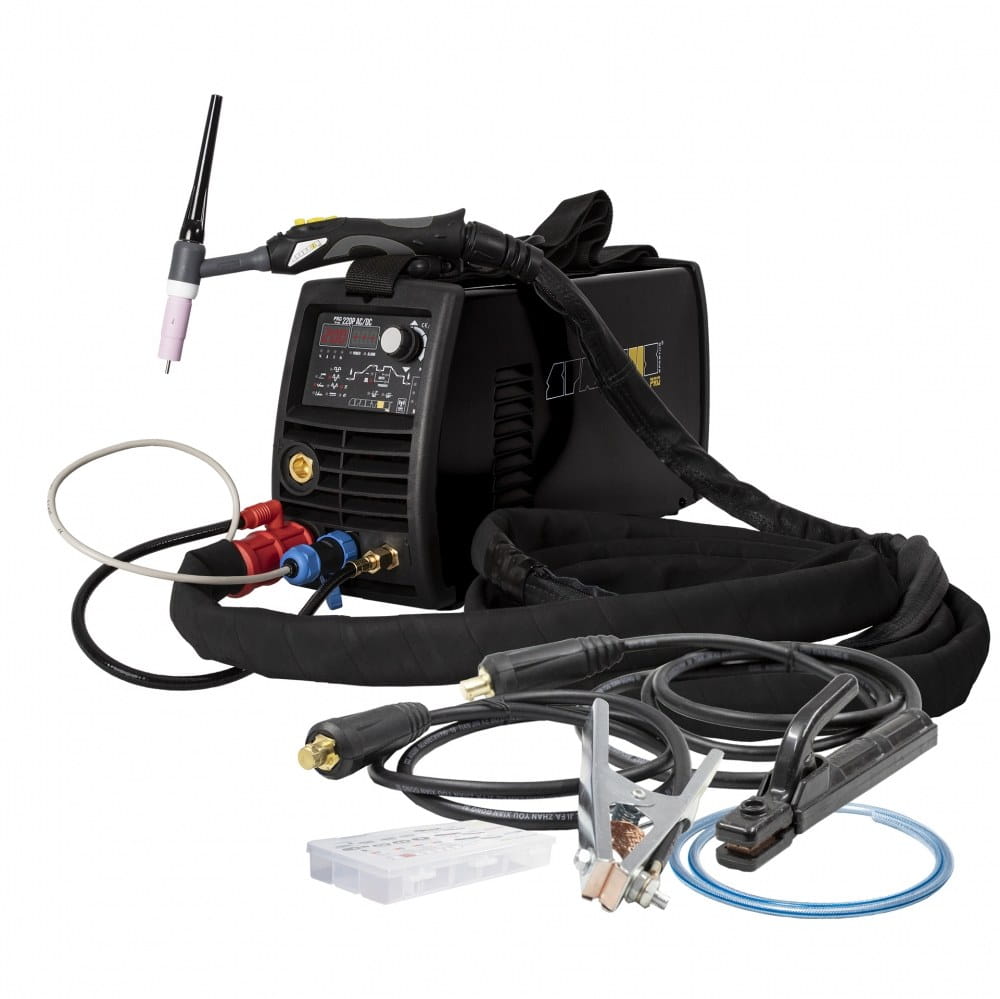

ProTIG 220P AC/DC package with TIG torch mini SPP 17 4B X - 4m
Leave feedback on the product
ProTIG 220P AC/DC package with TIG torch mini SPP 17 4B X - 4m
Product code: PROTIG220PACDC-PAK-17-4
Description
TINY, LIGHT AND PROFESSIONAL. IDEAL FOR WELDING ALUMINIUM AND STAINLESS STEEL.
SPARTUS® ProTIG 220P AC/DC. Modern, digitally controlled inverter welder, constructed on the basis of IGBTs. Allows welding TIG AC/DC and MMA AC/DC modes. It is powered with single-phase 230V source power.
For right welding methods, the welding current range is between: 5-200 (AC/DC mode). Allows TIG welding with pulse mode, making it an ideal machine for welding stainless and acid resistant steels. TIG AC welding mode, with ability to choose AC waveforms, AC balance and AC frequency, allows you to weld even the most demanding of aluminum alloys.
What impresses: small dimensions, lightweight (only 10,5 kg) and excellent output parameters. It is a machine designed for both the manufacturing sector, as well as maintenance and montage.
Examples of use: industrial, portable repair, workshop, maintenance, constructions.
| # | Attribute type | Attribute value |
|---|---|---|
| 1 | Input | ~1× 230V ± 10% 50 / 60 Hz |
| 2 | TIG duty cycle | 40% |
| 3 | Hot Start | 1 |
| 4 | Up slope | 0 - 10s |
| 5 | Control plug | 9SPA - SPARTUS® |
| 6 | 2T/4T Control | 1 |
| 7 | TIG welding current | 5 - 200A |
| 8 | MMA welding current | 5 - 200A |
| 9 | Power factor (cosφ) | 0.68 |
| 10 | AC wave forms | prostokątny | sinusoidalny | trójkątny |
| 11 | Efficiency η | 85% |
| 12 | Insulation class | H |
| 13 | Protection class | IP23 |
| 14 | Weight | 10.5kg |
| 15 | Dimensions | 480 x 140 x 240mm |
| 16 | Arc ignition | HF |
| 17 | Gas pre flow | 0 - 2s |
| 18 | Gas post flow | 0 - 10s |
| 19 | Down slope | 0 - 10s |
| 20 | TIG Pulse | 1 |
| 21 | Pulse Amps | 5 - 200A |
| 22 | No-load voltage | 69V |
| 23 | Pulse Width | 5 - 95% |
| 24 | Pulse frequency | 0.5 - 999Hz |
| 25 | AC frequency | 50 - 250Hz |
| 26 | AC balance | 10 - 99% |
| 27 | Control options | sterowanie nożne bezprzewodowe | sterowanie w rękojeści UP&DOWN | sterowanie nożne przewodowe | sterowanie w rękojeści potencjometr | pilot bezprzewodowy |
| 28 | Arc Force | 1 |
| 29 | Current consumpiton | 22A |
